THE TJ-100

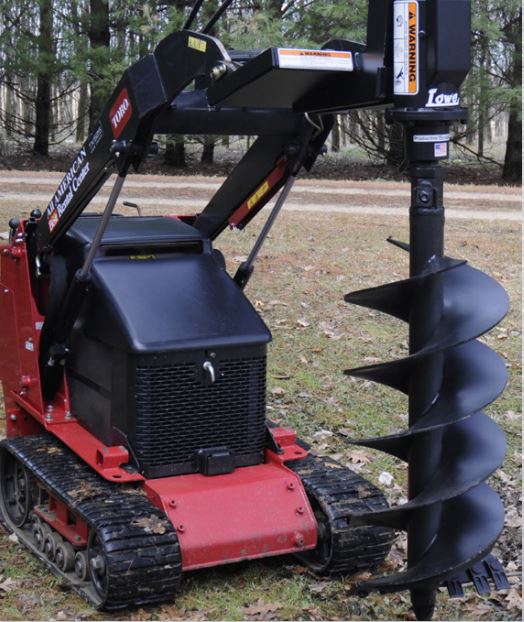

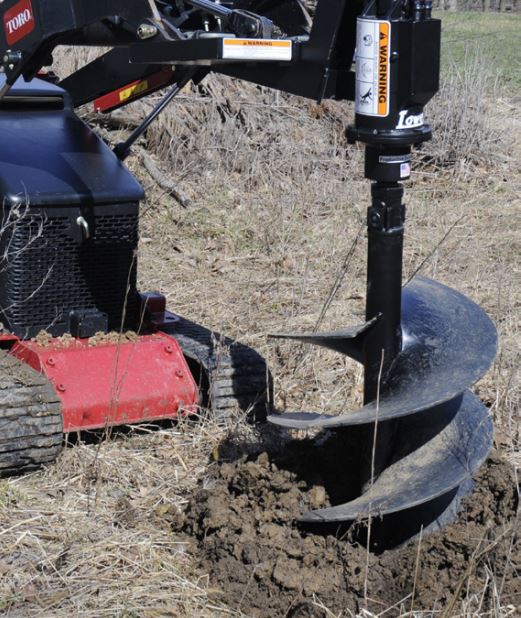

New TJ-100 Gear Reduction Auger Drive Unit with Innovative New Mounting System
Featuring a LOWE® designed and manufactured gearbox. Made in the USA.
Choose either a 2 inch (51mm) hex shaft or a2 9/16 inch (65mm) round shaft.
For Mini-Loaders with Toro-Dingo* compatible mountings and other brands of smaller machinery.
Use augers up to a 36 inch diameter (914mm) depending upon conditions.
Innovative new high lift mounting has better carrying stability and allows use of four foot (1.3m) long augers.
Backed by a five-year repair or replace warranty on the gearbox.
Unit has fully protected hydraulic hoses.
More Information
*Toro and Dingo are registered trademarks of the Toro Company.
Download our brochure with specifications.
Specifications
| Model | Suggested Flow | Rec. Max Auger Size |
|---|---|---|
| 500 Classic | 5-15 GPM (2,000-3,000 PSI) | 15-inch (381 mm) |
| 750 Classic | 7-20 GPM (2,000-3,000 PSI) | 24-inch (610 mm) |
| 1200 Classic | 10-20 GPM (2,000-3,000 PSI) | 30-inch (762 mm) |
| 1650 Classic | 14-25 GPM (53-95 Lpm) | 36-inch (914 mm) |
| 1650 High Pressure Classic | 14-25 GPM (2,000-3,500 PSI) | 36-inch (914 mm) |
| 2175 Classic | 16-25 GPM (2,000-3,500 PSI) | 36-inch (914 mm) |
| TJ-100 | 6-14 GPM (2,000-3,000 PSI) | 24-inch (341 mm) |
| BP-150 | 10-20 GPM (2,000-3,000 PSI) | 30-inch (762mm) |
| BP-210 | 15-25 GPM (2,000-3,000 PSI) | 36-inch (914 mm) |
| BP-210 High Pressure | 15-30 GPM (2,000-3,500 PSI) | 36-inch (914mm) |
| BP-230 | 18-25 GPM (2,000-3,000 PSI) | 36-inch (1,219 mm) |
| BP-230 High Pressure | 18-30 GPM (2,000-3,500 PSI) | 48-inch (1,219 mm) |
| A-400 | 22-42 GPM (2,000-4,200 PSI) | 48-inch (1,219mm) |
