The XR-Series from LOWE®
The Classic Series drive units have features not found even on competitor’s more costly products. Five models are available to best match your machinery and applications
A fixed, self-aligning boom with an industrial strength grease cylinder adjustment system
Extra strong chassis
High strength maintenance-free tapered roller bearings in the boom nose
High quality hydraulic components and simple hose routing.
Durable oversized boom nose idler
Premium hydraulic motors
Anti-back flex (ABF) digging chain for longer life and maximum digging performance
Double-flighted auger for fast spoil removal
More Information
All standard mount XR-trenchers have a built-in feature that allows for manual side-shifting. The XR-14 though the XRH-35 have an optional hydraulic side shift for users that need to make numerous adjustments to the side shifting capability. Fixed-mount trenchers are also available for those that do not need to side shift and wish to save additional cost.
With a large selection of boom lengths and digging chains available, find out how a LOWE® trenching attachment can make your machinery investment more useful.
Download our brochure with specifications.
Specifications
| Model | Base Machine Recommended Flow | Trench Depth | Trench Width |
|---|---|---|---|

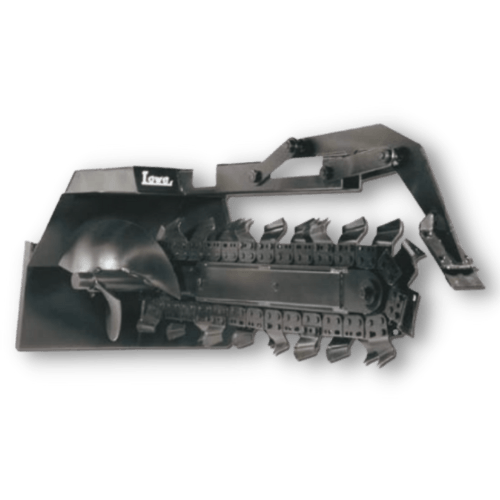

| XR-7 | 8-15 GPM (1,700-3,000 PSI) | 2’-3’ (.61m-.91m) | 4”-8” (102mm-203mm) |

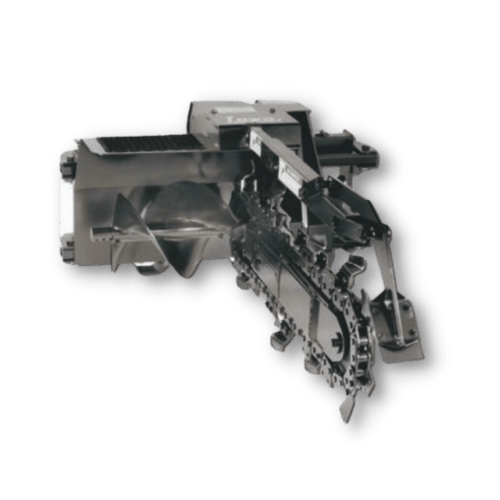

| XR-14 | 10-20 GPM (1,900-3,000 PSI) | 2’-4’ (.61m-1.22m) | 6”-12” (152mm-305mm) |

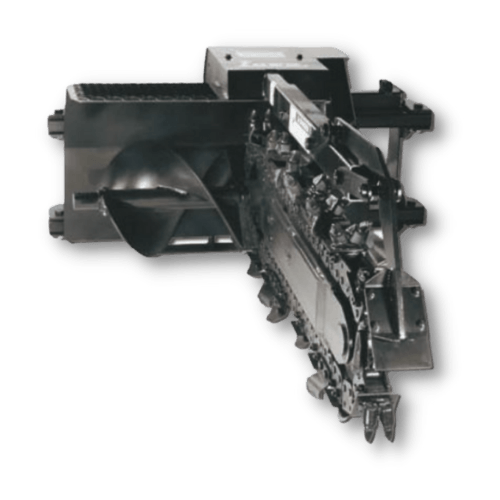

| XR-21 | 13-25 GPM (2,000-3,000 PSI) | 2’-5’ (.61m-1.52m) | 6”-12” (152mm-305mm) |
| XRHP-21 | 13-25 GPM (2,000-3,500 PSI) | 2’-5’ (.61m-1.52m) | 6"-12" (152mm-305mm) |

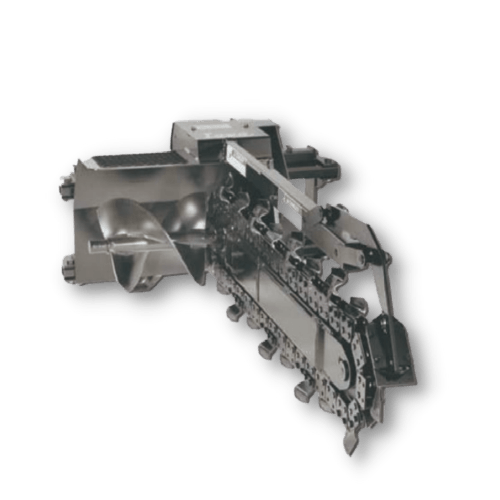

| XR-25 | 16-25 GPM (2,000-3,000 PSI) | 2’-5’ (.61m-1.52m) | 6”-12” (152mm-305mm) |
| XRHP-25 | 16-25 GPM (2,000-3,500 PSI) | 2'-5' (.61m-1.52m) | 6"-12" (152mm-305mm) |
| XR-35 | 202,000-4,200 PSI)-40+ GPM ( | 2'-5' (.61m-1.52m) | 6"-12" (152mm-305mm) |
